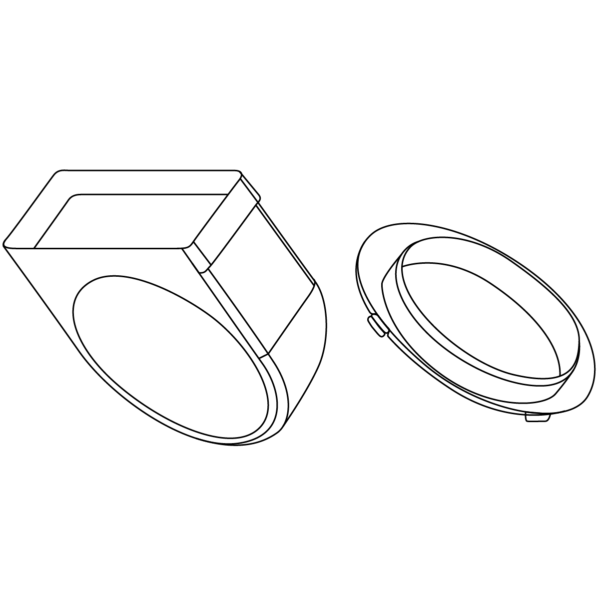

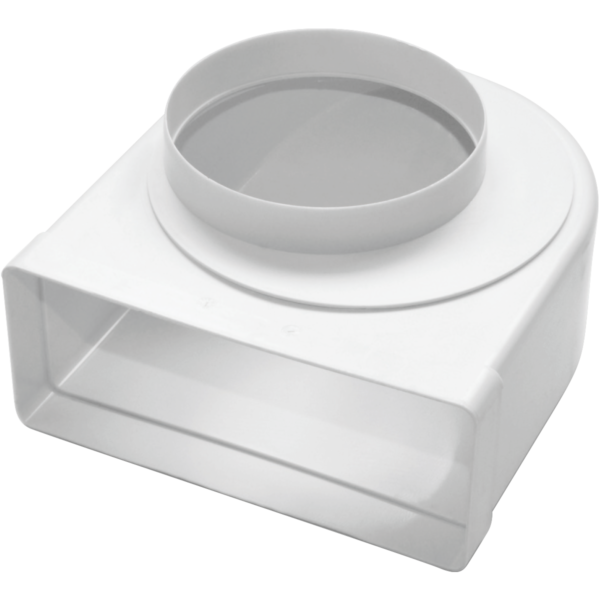

Adjustable Rangehood Adaptors 150 Ø
Size: 220mm x 90mm / 150 Ø
Size: 300mm x 60mm / 150 Ø
Size: 350mm x 75mm / 150 Ø
PERFORMANCE DATA
| Part No. Dimensions |
30 L/s | 60 L/s | 80 L/s | 90 L/s | 100 L/s | 120 L/s | 150 L/s |
|---|---|---|---|---|---|---|---|
| LPD220ARANGEH150 220mm x 90mm |
1.19 | 4.09 | 8.16 | 10.44 | 12.82 | 13.49 | 15.21 |
| LPD300ARANGEH150 300mm x 60mm |
1.31 | 4.49 | 8.97 | 11.47 | 14.09 | 14.82 | 16.71 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
| Part No. Dimensions |
60 L/s | 80 L/s | 100 L/s | 120 L/s | 140 L/s |
|---|---|---|---|---|---|
| LPD350ARANGEH150 350mm x 75mm |
1.70 | 2.90 | 3.80 | 5.60 | 7.90 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
AIRFLOW DATA
