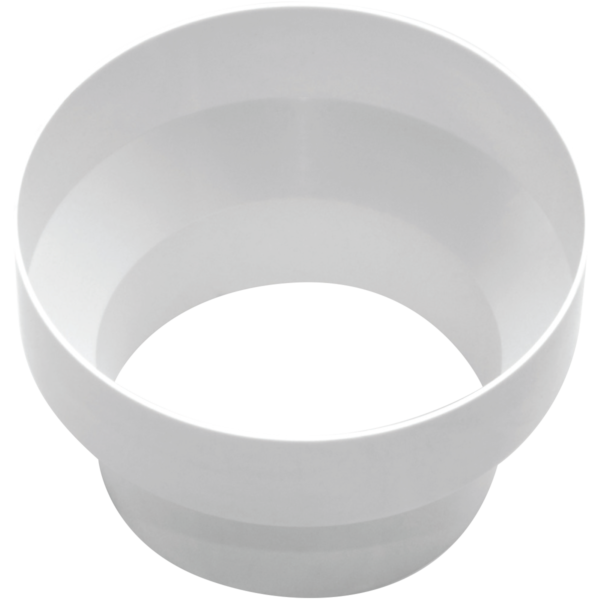

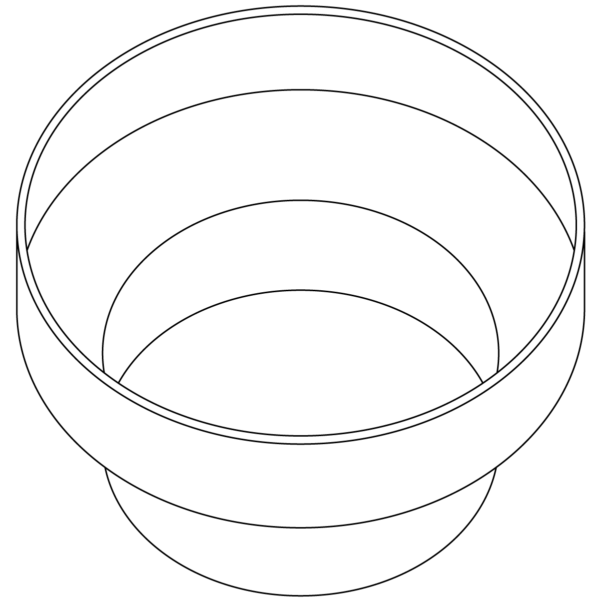

Round to Round Adaptor 200 Ø to 150 Ø

PERFORMANCE DATA

Part No.
Dimensions
30 L/s60 L/s80 L/s90 L/s100 L/s120 L/s150 L/s
LPD220RTR200-150
220mm x 90mm
0.340.841.742.292.883.896.64
LPD300RTR200-150
300mm x 60mm
0.370.921.912.523.164.277.30

Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).

Part No.
Dimensions
60 L/s80 L/s100 L/s120 L/s140 L/s
LPD350RTR200-150
350mm x 75mm
1.803.805.508.5015.40

Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).

AIRFLOW DATA
