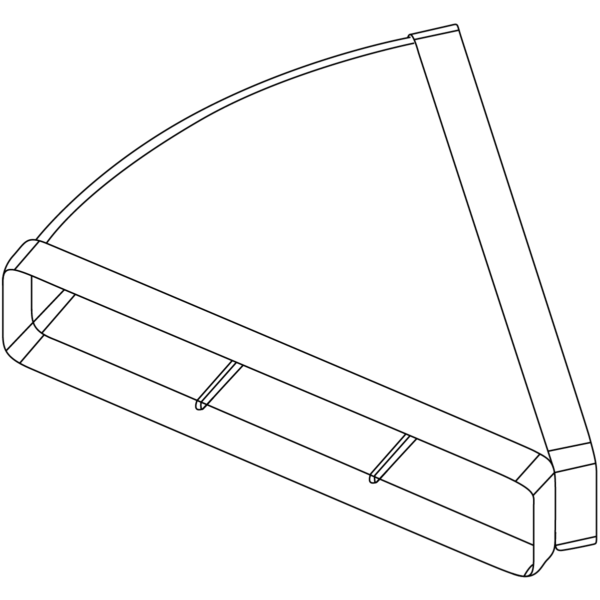

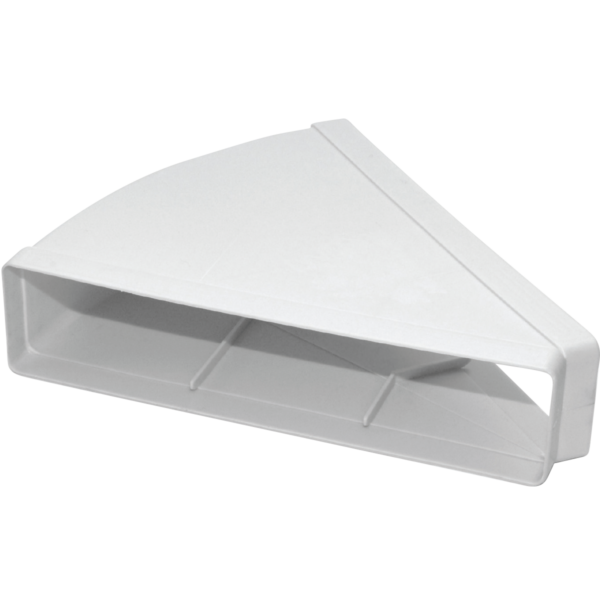

Horizontal Duct 45 Degree Bend
Size: 220mm x 90mm
Size: 300mm x 60mm
Size: 350mm x 75mm
PERFORMANCE DATA
| Part No. Dimensions | 30 L/s | 60 L/s | 80 L/s | 90 L/s | 100 L/s | 120 L/s | 150 L/s |
|---|---|---|---|---|---|---|---|
| LPD220HBEND45 220mm x 90mm | 0.77 | 3.16 | 5.41 | 7.38 | 9.68 | 12.11 | 17.79 |
| LPD220HBEND45 300mm x 60mm | 0.85 | 3.47 | 5.95 | 8.11 | 10.64 | 13.13 | 19.55 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
| Part No. Dimensions | 60 L/s | 80 L/s | 100 L/s | 120 L/s | 140 L/s |
|---|---|---|---|---|---|
| LPD350HBEND45 350mm x 75mm | 1.20 | 1.90 | 2.50 | 3.90 | 5.30 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
AIRFLOW DATA
