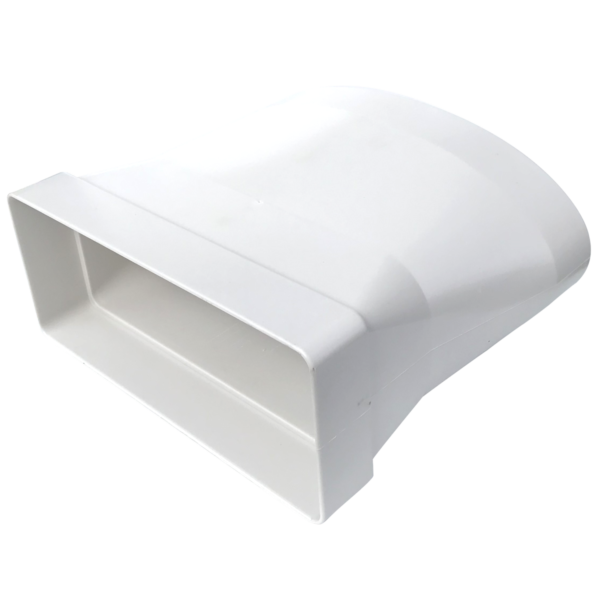

Oval to Rectangular Adaptor 200 Ø
Size: 220mm x 90mm / 200 Ø
Size: 350mm x 75mm / 200 Ø
PERFORMANCE DATA
| Part No. Dimensions |
30 L/s | 60 L/s | 80 L/s | 90 L/s | 100 L/s | 120 L/s | 150 L/s |
|---|---|---|---|---|---|---|---|
| LPD220OREC200 220mm x 90mm |
1.30 | 5.84 | 10.00 | 14.34 | 18.16 | 23.14 | 31.20 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
| Part No. Dimensions |
60 L/s | 80 L/s | 100 L/s | 120 L/s | 140 L/s |
|---|---|---|---|---|---|
| LPD350OREC200 350mm x 75mm |
8.03 | 13.97 | 24.93 | 31.83 | 46.19 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
AIRFLOW DATA
