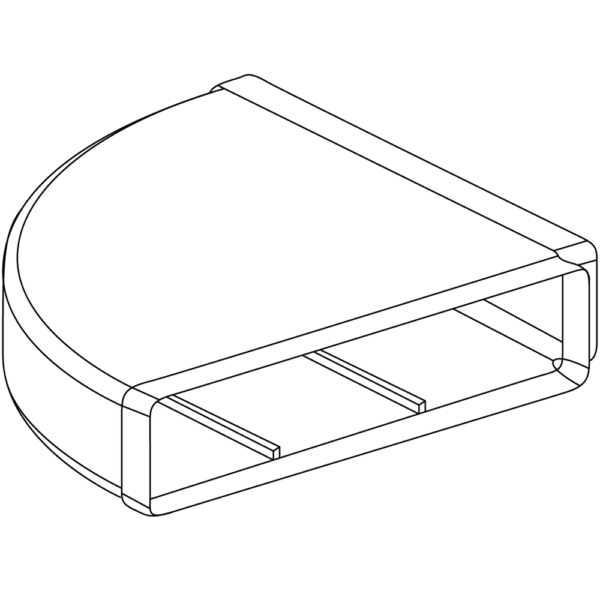

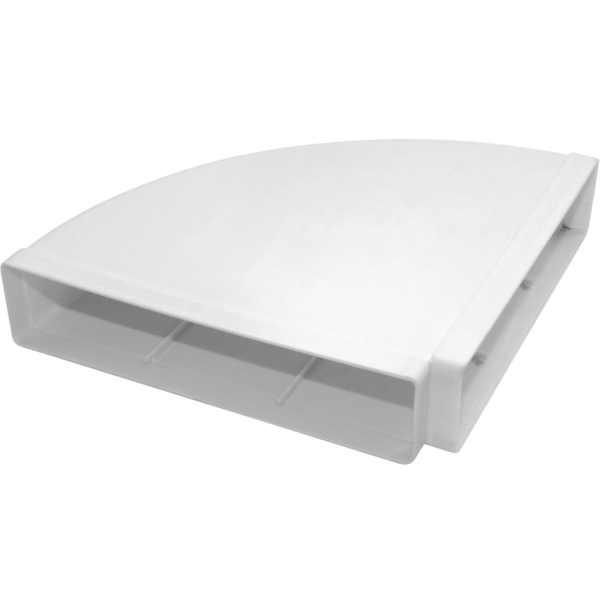

Horizontal Duct 90 Degree Bend

Size: 220mm x 90mm

Size: 300mm x 60mm

Size: 350mm x 75mm

PERFORMANCE DATA

Part No.
Dimensions
30 L/s60 L/s80 L/s90 L/s100 L/s120 L/s150 L/s
LPD220HBEND90
220mm x 90mm
2.4710.5919.1626.7333.7442.7462.79
LPD300HBEND90
300mm x 60mm
2.7111.6421.0529.3737.0846.9769

Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).

Part No.
Dimensions
60 L/s80 L/s100 L/s120 L/s140 L/s
LPD350HBEND90
350mm x 75mm
3.305.707.6012.3018.20

Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
