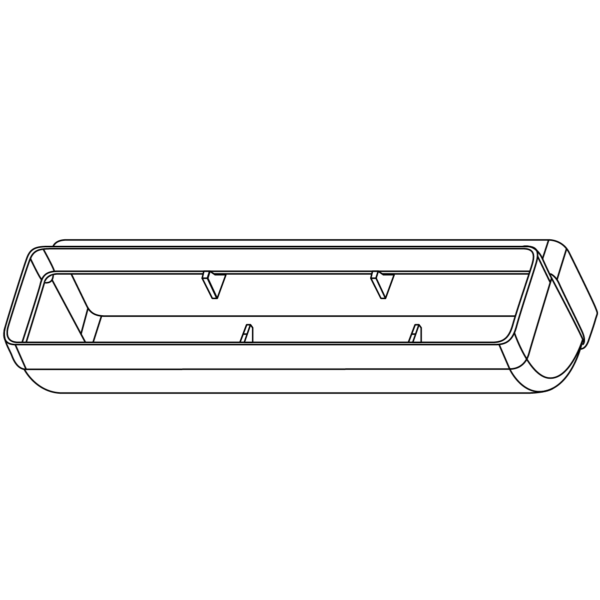

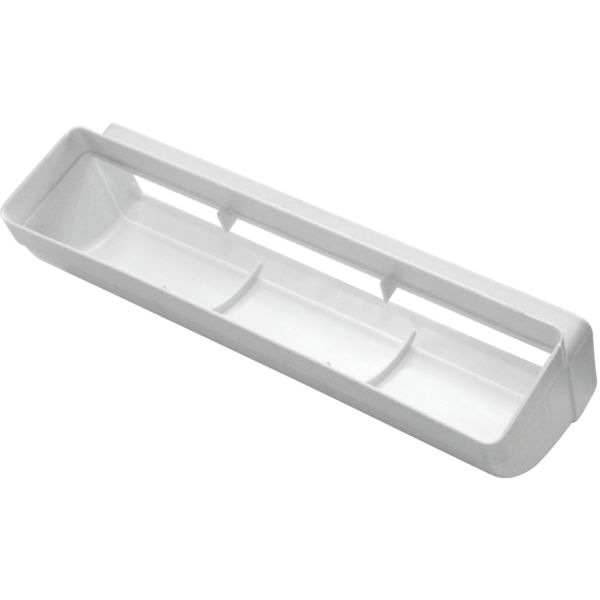

Vertical Duct 90 Degree Bend
Size: 220mm x 90mm
Size: 300mm x 60mm
Size: 350mm x 75mm
PERFORMANCE DATA
| Part No. Dimensions | 30 L/s | 60 L/s | 80 L/s | 90 L/s | 100 L/s | 120 L/s | 150 L/s |
|---|---|---|---|---|---|---|---|
| LPD220VBEND90 220mm x 90mm | 1.62 | 5.94 | 10.45 | 15.02 | 19.09 | 24 | 35.36 |
| LPD300VBEND90 300mm x 60mm | 1.78 | 6.53 | 11.48 | 16.51 | 20.98 | 26.37 | 38.86 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
| Part No. Dimensions | 60 L/s | 80 L/s | 100 L/s | 120 L/s | 140 L/s |
|---|---|---|---|---|---|
| LPD350VBEND90 350mm x 75mm | 2.50 | 3.50 | 4.20 | 6.90 | 10.10 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
AIRFLOW DATA
