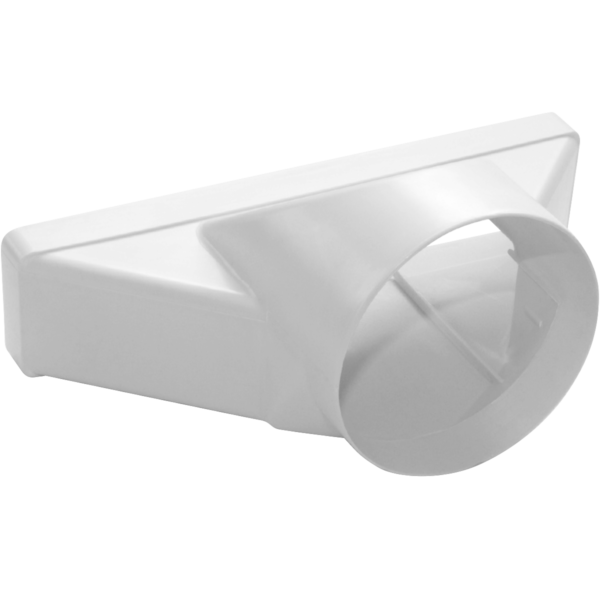

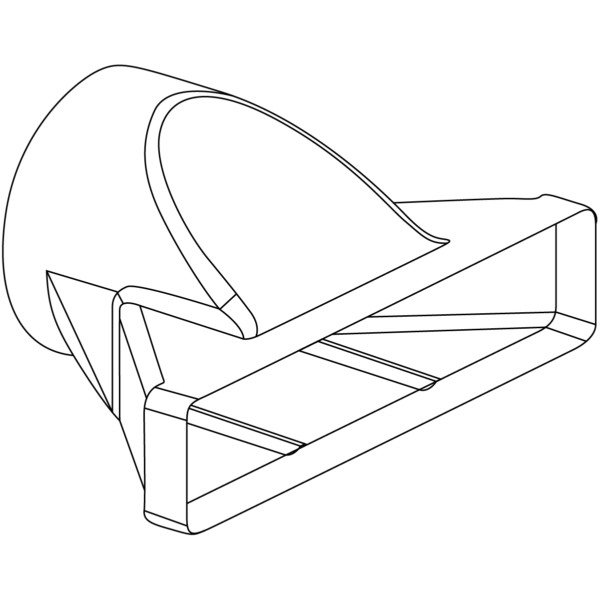

Round to Rectangular Adaptor 150 Ø
Size: 220mm x 90mm / 150 Ø
Size: 300mm x 60mm / 150 Ø
Size: 350mm x 75mm / 150 Ø
PERFORMANCE DATA
| Part No. Dimensions | 30 L/s | 60 L/s | 80 L/s | 90 L/s | 100 L/s | 120 L/s | 150 L/s |
|---|---|---|---|---|---|---|---|
| LPD220RREC150 220mm x 90mm | 1.19 | 5.48 | 9.53 | 13.49 | 17 | 21.71 | 31.5 |
| LPD300RREC150 300mm x 60mm | 1.31 | 6.02 | 10.47 | 14.82 | 18.68 | 23.86 | 34.62 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
| Part No. Dimensions | 60 L/s | 80 L/s | 100 L/s | 120 L/s | 140 L/s |
|---|---|---|---|---|---|
| LPD350RREC150 350mm x 75mm | 1.30 | 2.20 | 2.90 | 4.60 | 6.40 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
AIRFLOW DATA
