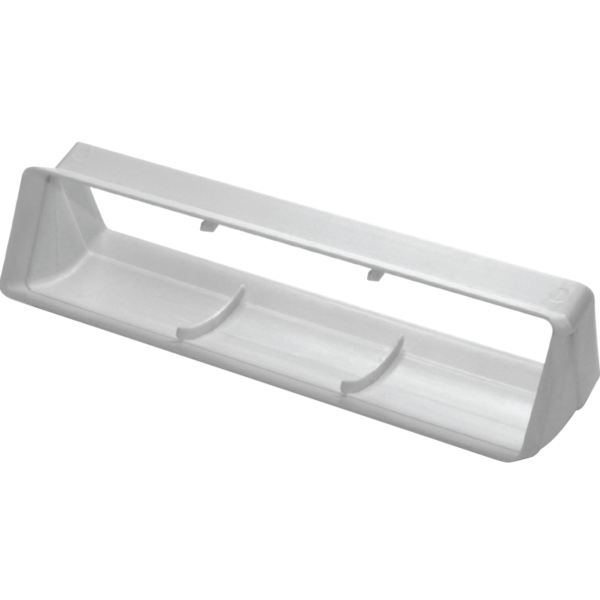

Vertical Duct 45 Degree Bend

Size: 220mm x 90mm

Size: 300mm x 60mm

Size: 350mm x 75mm

PERFORMANCE DATA

Part No.
Dimensions
30 L/s60 L/s80 L/s90 L/s100 L/s120 L/s150 L/s
LPD220VBEND45
220mm x 90mm
1.194.467.8411.2514.2817.9726.49
LPD300VBEND45
300mm x 60mm
1.314.908.6512.3715.6919.7529.11

Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).

Part No.
Dimensions
60 L/s80 L/s100 L/s120 L/s140 L/s
LPD350VBEND45
350mm x 75mm
1.502.403.104.806.90

Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).

AIRFLOW DATA
