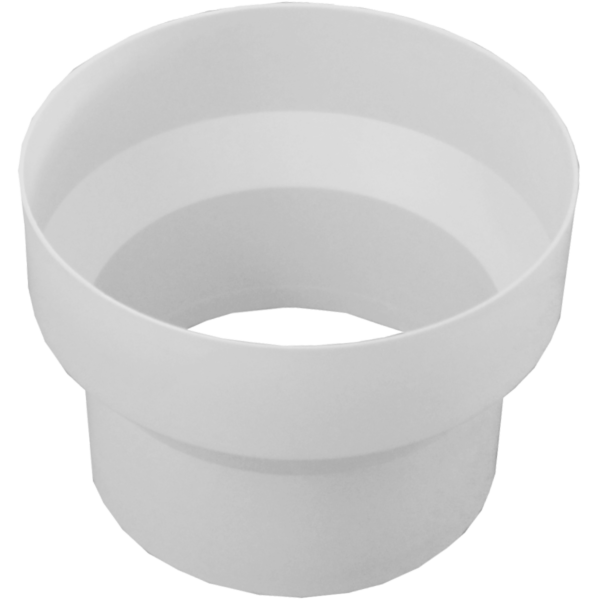

Round to Round Adaptor 150 Ø to 125 Ø
PERFORMANCE DATA
| Part No. Dimensions |
30 L/s | 60 L/s | 80 L/s | 90 L/s | 100 L/s | 120 L/s | 150 L/s |
|---|---|---|---|---|---|---|---|
| LPD220RTR150-125 220mm x 90mm |
0.28 | 0.70 | 1.45 | 1.91 | 2.4 | 3.24 | 5.53 |
| LPD300RTR150-125 300mm x 60mm |
0.31 | 0.77 | 1.59 | 2.10 | 2.64 | 3.56 | 6.08 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
| Part No. Dimensions |
60 L/s | 80 L/s | 100 L/s | 120 L/s | 140 L/s |
|---|---|---|---|---|---|
| LPD350RTR150-125 350mm x 75mm |
0.70 | 1.45 | 2.40 | 3.24 | 5.20 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
AIRFLOW DATA
