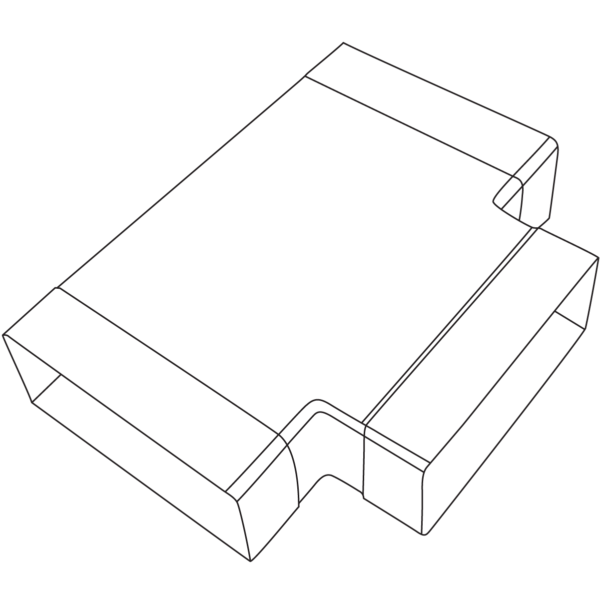

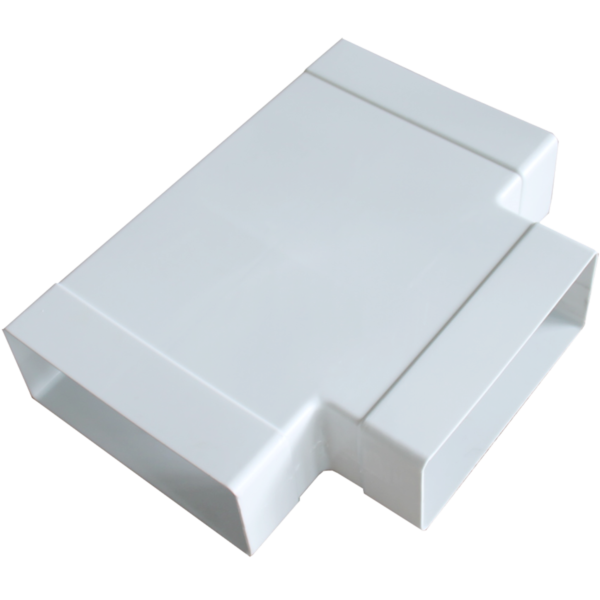

T-Piece Duct
Size: 220mm x 90mm
Size: 300mm x 60mm
Size: 350mm x 75mm
PERFORMANCE DATA
| Part No. Dimensions |
30 L/s | 60 L/s | 80 L/s | 90 L/s | 100 L/s | 120 L/s | 150 L/s |
|---|---|---|---|---|---|---|---|
| LPD220TPIECE 220mm x 90mm |
1.4 | 5.2 | 8.8 | 11.2 | 13.5 | 19 | 30 |
| LPD300TPIECE 300mm x 60mm |
1.54 | 5.72 | 9.68 | 12.32 | 14.85 | 20.9 | 33 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
| Part No. Dimensions |
60 L/s | 80 L/s | 100 L/s | 120 L/s | 140 L/s |
|---|---|---|---|---|---|
| LPD350TPIECE 350mm x 75mm |
2.4 | 4 | 5.2 | 8.2 | 11.5 |
* Table shows the PRESSURE LOSS (Pa) for Dimensions shown. AIRFLOW in Litres per second (L/s).
AIRFLOW DATA
